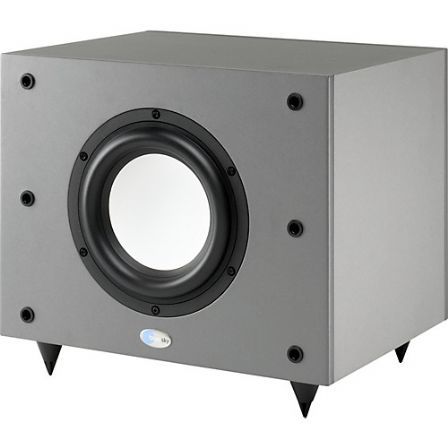

Bluesky Mod.Sub-8

Product SKU: 5009

250,00 €


Contattaci per informazioni per l'acquisto


Tutti i prodotti di questa marca

SUB 8 Active Subwoofer Enclosure .75” MDF with 1” front and rear baffle Isolation feet included Dimensions: 13” H x 16” W x 13.37” D (15.76” with heatsink and grill) Weight 48.5lbs / 22kg 8” Hemispherical Woofer 8-inch high excursion woofer Vented motor structure Cast aluminum frame 2.0 “ voice coil Aluminum alloy cone Electrical Specification Input Voltage 115/230 VAC 50/60Hz switchable Wattage 200 Watts Fuse 115VAC 2A - 250 V 5x20mm (Time Delay or Slo-Blo) 230VAC 1.25A - 250 V 5x20mm (Time Delay or Slo-Blo) Amplifier Discrete symmetrical bipolar design 100 Watts RMS into 4-Ohm 01% THD + noise at rated power 100 Hz XLR balanced input Adjustable gain control Voltage Sensitivity 100mv=90dB SPL 1 MT Frequency Response (SUB IN - anechoic) 35 to 200Hz Typical in room response (SUB IN) 20 to 200Hz ass-Management Section Input impedance 20K balanced Common mode rejection 40dB typical 60Hz Maximum Input Level +24dBu balanced Output Impedance 200 Ohms balanced Nominal gain 0dB SUB IN low pass filter None Switchable Filter Settings SAT 5 Mode High Pass Filter None (uses filter in SAT 5) Low Pass Filter 80Hz 4th Order Universal MK III Mode Dual independently tunable state variable high pass and low pass filters Frequency Range 50Hz to 160Hz Filter Slope 4th
