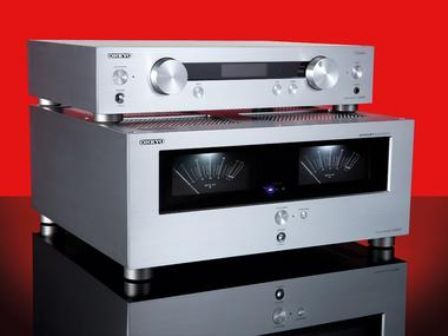

Onkyo Mod.P-3000/M-5000

Product SKU: 3636

3780,00 €

Contattaci per informazioni per l'acquisto

Onkyo

Tutti i prodotti di questa marca

Nuovo

Preamplifier Sophisticated Two-Channel Pre-Amp for Sublime Audio DISPONIBILE CON FINITURA NERO Despite being at the cutting edge of the burgeoning home cinema market, Onkyo has never forgotten its roots in pure hi-fi audio. With the P-3000R, we present a streamlined two-channel pre-amplifier that packs a treasure trove of stunning audio technology. The P-3000R handles both analog and digital sources, with connectivity options including AES/EBU digital connectors and a USB input for PC audio. Separate 192 kHz/32-bit Burr-Brown DACs for each channel ensure accurate digital-to-analog conversion. Meanwhile, to minimize interference and maintain signal quality, the P-3000R employs noise-reducing DIDRC technology, a vibration-resistant chassis design, and independent amplifier circuitry. Thanks to the P-3000R’s bi-amping capability, you also have greater flexibility in how you set up your system. As always, the job of all this advanced hardware is to bring you closer to your music and let you feel the unique resonance of each individual instrument. Technical Details Features DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) Separate Digital/Analog Circuitry Separate Massive Transformers for Digital/Analog Circuitry (Toroidal Transformer for Analog Circuitry) Separate Anti-Vibration Aluminum Panels for Top, Front, and Sides New Circuit Board Construction to Reduce Vibration PLL Ultra-Low Jitter Technology Sampling Rate Control (Up to 192 kHz) Separate Burr-Brown 192 kHz/32-Bit DACs (PCM1795) for L/R Channels Direct Mode Tone Control (Bass/Treble) Independent Headphone Amplifier Discrete Phono Equalizer Phono Input (MM) USB Digital Input for 192 kHz/32-Bit HD Audio from PC* 5 Digital Inputs (AES/EBU, 2 Optical, and 2 Coaxial) and 1 Output (Optical) Separate L/R Bi-Amping-Capable Pre-Outs Gold-Plated, Machined Solid Brass, 19 mm-Pitch Audio Terminals 12 V Trigger Out Display Dimmer (Normal/Dim/Off) *Playback of PC audio requires dedicated software that can be downloaded froman Onkyo website. DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) Since the advent of digital audio, signal-to-noise ratios have improved dramatically. However, the S/N ratio reflects static noise only, and takes no account of another type of noise that occurs as the byproduct of sound reproduction—dynamic noise. To reduce this type of noise, Onkyo has developed DIDRC technology for use in our hi-fi components. Despite being beyond the normal range of human hearing, frequencies above 100 kHz are susceptible to clock pulse and other forms of distortion from digital devices. Such distortion in the super-high-frequency range can generate “beat interference”, which in turn affects the character or atmosphere of the original sound. By improving linearity and reducing distortion in the super-high-frequency range, Onkyo’s new DIDRC technology effectively reduces perceptible noise and delivers clearer-than-ever audio. Separate Digital/Analog Circuitry and Transformers To prevent unwanted interference, the P-3000R employs physically separate circuitry for digital and analog processing. What’s more, it also features separate transformers for digital and analog circuitry. Playback of Various Music Sources Including PC Audio via USB The P-3000R pre-amp accepts analog sources such as records and tapes, along with digital output from iPod via a digital media transport such as Onkyo’s ND-S1. Using the USB device (C-Media CM6631) on the rear panel of the P-3000R, you can also connect your PC and play back 192 kHz/32-bit HD audio formats*. *Playback of PC audio requires dedicated software that can be downloaded from an Onkyo website. PLL (Phase Locked Loop) Ultra-Low Jitter Technology Jitter is an unwanted side-effect of the digital-to-analog conversion process caused by fluctuations in the time domain of a digital signal. PLL ultra-low jitter technology reduces jitter by comparing the input and output phases of the digital signal and creating an accurate clock waveform. This enhances the precision of digital signal processing and noticeably improves perceived audio quality. Separate TI Burr-Brown DACs for L/R Channels High-quality TI Burr-Brown DACs work to optimize analog audio performance on Onkyo’s new hi-fi components. The P-3000R pre-amp sports dual 32-bit PCM1795 DACs, which support sampling rates of up to 192 kHz, display high resistance to clock jitter, and handle a 123 dB dynamic range. Although these DACs can process two-channel audio on a single chip, Onkyo employs separate chips for each stereo channel, to ensure the most accurate digital-to-analog conversion. Bi-Amping Capability The P-3000R pre-amp offers the audiophile possibilities of bi-amping. Compatible speakers can be bi-amped for separate powering of high and low frequencies. Using the bi-amping mode on the P-3000R gives you greater control of the frequency balance. Audiophile-Quality Parts The P-3000R incorporates a massive toroidal transformer for the analog circuitry that reduces magnetic flux leakage, improves efficiency, and keeps the power supply stable. For the digital circuitry, meanwhile, it employs a high-quality EI transformer. Gold-plated, machined solid brass, 19 mm-pitch terminals ensure a clean connection and help prevent interference between thick, high-quality cables. Meanwhile, Amphenol AES/EBU digital inputs provide resistance to signal degradation and noise. New Circuit Board Construction Rather than being directly connected to the chassis base, the circuit boards inside the P-3000R are cushioned by internal struts and affixed to the front, side, and rear panels. This method of construction prevents vibrations from the chassis from adversely affecting the circuit boards. Separate Panel Construction The P-3000R features separate aluminum panels for the top, sides, and front to reduce unwanted vibrations caused by internal resonance. Compared to a one-piece chassis design, this construction method offers greater rigidity and improved noise reduction. Mod.M-5000R Finale di potenza dual mono con ingressi bilanciati e sbilanciati Technical Details Features Max. Power: 170 W/Ch (4 Ù, 1 kHz, 1%, 2 Channels Driven, IEC) AWRAT (Advanced Wide Range Amplifier Technology) DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) Quad Push-Pull Amplification Design with Three-Stage Inverted Darlington Circuitry Symmetrical Layout of L/R Channels Two Massive Toroidal Transformers with Sub Transformer Four Large 27,000 ìF Capacitors Separate Anti-Vibration Aluminum Panels for Top, Front, and Sides New Circuit Board Construction to Reduce Vibration Bi-Amping and BTL (Bridged Transless) Capability Balanced XLR Input for Monaural Amplification in BTL Mode Gold-Plated, Machined Solid Brass RCA Inputs Gold-Plated Large Speaker Posts 12 V Trigger Input and Output Extra-Large Fast-Response Peak Watt Meters AWRAT (Advanced Wide Range Amplifier Technology) The M-5000R employs a host of proprietary Onkyo technologies to ensure optimal audio performance. 1. DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) Since the advent of digital audio, signal-to-noise ratios have improved dramatically. However, the S/N ratio reflects static noise only, and takes no account of another type of noise that occurs as the byproduct of sound reproduction—dynamic noise. To reduce this type of noise, Onkyo has developed DIDRC technology for use in our hi-fi components. Despite being beyond the normal range of human hearing, frequencies above 100 kHz are susceptible to clock pulse and other forms of distortion from digital devices. Such distortion in the super high frequency range can generate “beat interference”, which in turn affects the character or atmosphere of the original sound. By improving linearity and reducing distortion in the super-high frequency range, Onkyo’s new DIDRC technology effectively reduces perceptible noise. 2. Low Negative-Feedback Design Too much NFB makes a system susceptible to counter-electromotive force from the speakers, resulting in a drop in perceived sound quality. To avoid this, Onkyo focuses on improving the frequency response and reducing distortion, without relying so much on NFB. 3. Closed Ground-Loop Circuits The M-5000R employs a sophisticated closed-circuit design in which each circuit has a separate link to the power supply. This helps to cancel individual circuit noise and keep the ground potential free of distortion. 4. HICC (High Instantaneous-Current Capability) Handling current loads up to 150 amperes, HICC enables an amplifier to immediately cancel the speakers’ reflex energy and instantaneously send out the next signal. The same high current required to achieve this also supports the amplifier’s ability to handle speaker impedance fluctuations. 5. Symmetrical Twin-Monaural Construction Power devices for the left and right channels of the M-5000R are aligned symmetrically. Each channel has the same electrical and structural design, and signal pathways are uniform in length. This helps to minimize errors in stereophonic playback. Quad Push-Pull Amplification Design with Three-Stage Inverted Darlington Circuitry Three-stage inverted Darlington circuitry brings greater efficiency to the M-5000R power amp by employing a low-NFB design to maintain voltage stability and enhance transient response. Extremely sensitive to oscillations, this circuitry requires very advanced control technology in order to be incorporated into the amplifier. Breaking further new ground, the M-5000R employs two extra transistors for each channel in a “quad push-pull” design that significantly enhances amplification power. BTL (Bridged Transless) Capability The M-5000R offers the audiophile possibilities of BTL through its pro-grade XLR input. You can use the BTL feature in conjunction with a compatible pre-amp and a second power amp to double the power output for left and right channels. Audiophile-Quality Parts The M-5000R incorporates two massive toroidal transformers that reduce magnetic flux leakage, improve efficiency, and keep the power supply stable. Also on-board are a sub-transformer and four 27,000 microfarad capacitors that work to make the current significantly smoother. Gold-plated, machined solid brass terminals ensure an extremely clean connection. New Circuit Board Construction Rather than being directly connected to the chassis base, the circuit boards inside the M-5000R are cushioned by internal struts and affixed to the front, side, and rear panels. This method of construction prevents vibrations from the chassis from adversely affecting the circuit boards. Separate Panel Construction The M-5000R features separate aluminum panels for the top, sides, and front to reduce unwanted vibrations caused by internal resonance. Compared to a one-piece chassis design, this construction method offers greater rigidity and improved noise reduction.
