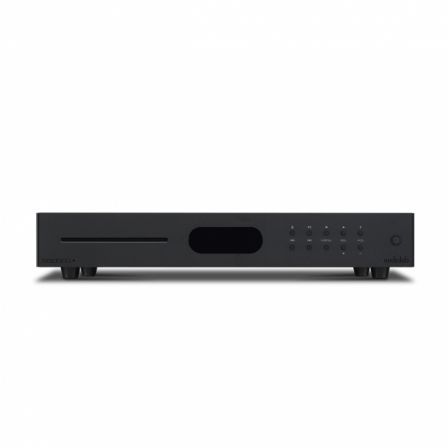

Audiolab Mod.8300cd
Product SKU: 4398
1260,00 €
Contattaci per informazioni per l'acquisto
Audiolab
Tutti i prodotti di questa marca
Nuovo
DAC e meccanica di lettura CD integrati, 384kHz (PCM) / 11.2M (DSD256), convertitori Sabre a 32 bit, filtri digitali selezionabili, master clock proprietario, stadio di uscita a componenti discreti bilanciato e in classe A, uscite bilanciate XLR e sbilanciate RCA, ingressi digitali coassiali, ottici e USB 2.0 asincrona, schermo oled, telecomando
Specifications
Overview
General Description CD Player, Digital-to-Analogue Converter
Finish Fine Textured Aluminium (Black / Silver)
Display POLED 128x64 pixels 2.7 pollici
Standby Feature Yes
12V Trigger Yes
CD Mechanism Slot-Loading
DSD Compatible Yes (DSD64 / DSD128 / DSD256)
Disc Compatibility CD/CDR
DAC ESS Sabre32 9018 chip
Resolution 32 bits
Sampling Frequency Optical,Coaxial, AES: 32kHz - 192kHz
USB:32kHz - 384kHz(PCM) / DSD64, DSD128, DSD256
Maximum Sampling Frequency Optical,Coaxial, AES: 192kHz
USB: 384kHz (PCM) / 11.2M (DSD256)
Digital Input 2 x Coaxial, 2 x Toslink Optical, 1xAES/EBU, 1 x USB for PC USB,
Digital Output 1 x Coaxial, 1 x Toslink Optical,1 x AES
Output Voltage 4.2Vrms +- 0.1 (Balanced)
2.1Vrms +- 0.1 (Unbalanced)
Output Impedance 10 ohm
THD (1kHz 0dB 20Hz - 20kHz A wtd. <0.002%
Frequency Response +/-0.2dB 20Hz - 20KHz (± 0.2dB)
Signal-to-Noise Ratio (S/N) A wtd RCA:
Dynamic Range (A wtd.) RCA:>98dB ,XLR>100dB
Crosstalk 1K RCA:
Gain Error <0.5W
Dimensions (H x W x D) 80 x 444 x 317mm
Weight 6kg
